Rayburn No.1

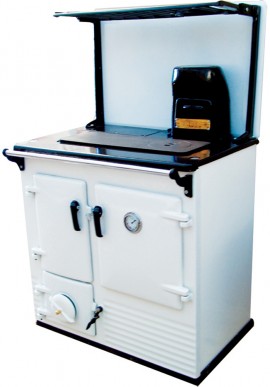

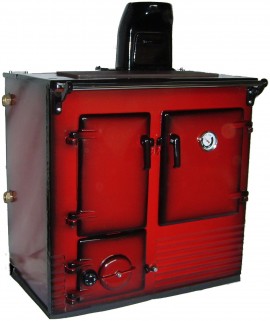

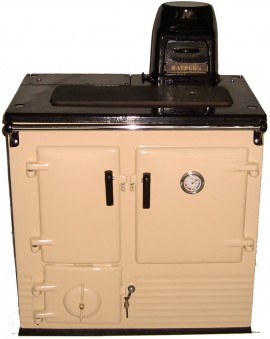

A reconditioned Rayburn No.1 from GMH is a very compact heating cooker that will heat up to 5 radiators. In its original solid fuel format there is a large spin wheel on the ash box door to allow for fine control of the burn rate and some models allow for external riddling to minimise ash dust in the kitchen.
Both fuel types have a single, medium capacity oven with a door mounted temperature gauge. There are options for a plate rack & splash back and a decorative side-mounted water tank but please check availability with our sales office.
Rayburn No.1 Solid Fuel Configurations
- Non boiler
- Domestic hot water boiler
- Central heating boiler for up to 5 radiators
Features
- Burns all types of solid fuel
- Robust cast iron construction
- Oven temperature indicator
- Large surface hotplate
- Front loading
- Large roasting oven
- Lower warming oven
- Large roasting oven
- Heats up to 8 radiators
- Right or left hand flue option
Optional Extras

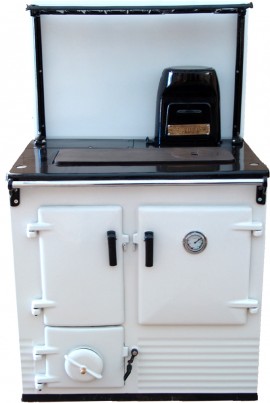

- Optional plate rack and splash back
- Optional ornamental water tank (non boiler)
- Steel Plinth
Specifications
- Height 762mm
- Width 762mm
- Depth 508mm
- Depth to bracket 575mm
- Flue 5” (125mm) rear centred: H742mm x 215mm from RH edge. Top connection option available
- Boiler flow pipe 1” BSP centred: H494mm x 100mm from back edge
- Boiler return pipe 1” BSP centred: H266mm x 100mm from back edge
- Hotplate W545mm x L195mm boiling side LH
- Flue damper
- Oven W310mm x H368mm x D400mm
- Fuel: multi-fuel: wood & coal
- Firebox dimensions: W230mm x H450mm x D280mm
- External riddling available on some models
- Height to top of splash back panel: 1240mm
Click here to view our range of enamel colours or contact us for prices and availability.
We offer a full installation service; however the price may vary depending on any additional preparation work required such as for the chimney or plumbing.
Due to the nature of the casting process all dimensions are subject to slight +/- variations.
