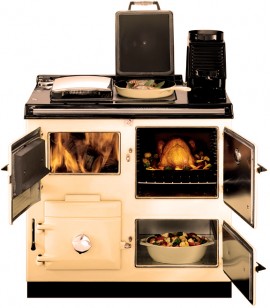

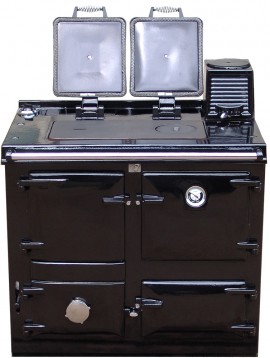

Rayburn Supreme

A reconditioned Rayburn Supreme from GMH is the most powerful heating cooker in our Rayburn range and is capable of heating up to 12 radiators. Later models were renamed the Rayburn 355 and all models are available in both the original solid fuel format or professionally converted to oil.

The solid fuel model has thermostatic airflow control, adjusted by a top-mounted rotary dial and can be riddled using the external lever so there is no need to open the ash box door. There are additional airflow controls on the flue box door and a spin wheel on the outside of the ash box door allowing for a very fine degree of control.

There is also an adjustable baffle just under the hob for diverting hot air to or from the ovens and the Supreme boasts a truly enormous fire box ideal if you do not want to feed the appliance too often.

Rayburn Supreme Configurations

  • Solid fuel and boiler for up to 12 radiators
  • Wick Non boiler

Features

  • Burns all types of dry solid fuel
  • Robust cast iron construction
  • Oven temperature indicator
  • Large surface hotplates
  • Twin hotplate covers
  • Large capacity main oven
  • Second warming oven
  • Front firebox loading
  • Heats up to 12 radiators

Optional extras

  • Chrome hot plate covers


Specifications

Rayburn 3
  1. Height 820mm
  2. Base width 840mm
  3. Depth 510mm
  4. Depth to bracket 510mm
  5. Flue 5” (125mm) top outlet only
  6. Boiler flow pipe (see table below)
  7. Boiler return pipe (see table below)
  8. Roasting oven W356mm x H305mm x D403mm
  9. Warming oven W365mm x H203mm x D403mm
  10. Hotplate W546mm x L197mm boiling side
  11. Hotplate simmering side
  12. Fuel: Wood
  13. Height to top of splash guard 995mm (this dimension can vary, ask for details)
  14. Width of hob: 840mm (wider than base width)
  15. Height of opened lid, full extent: 1245mm

Boiler Pipes – 1” BSP Connections
Centres:
Flow H625mm x 90mm from rear
Return H320mm x 90mm from rear

notes

  • Max. Weight: 370Kg
  • OF7 – Non-boiler or DHW
  • OF22 – DHW or 11.15M² radiator surface area (approx. 6 single rads)

Click here to view our range of enamel colours or contact us for prices and availability.

We offer a full installation service; however the price may vary depending on any additional preparation work required such as for the chimney or plumbing.

Due to the nature of the casting process all dimensions are subject to slight +/- variations.
