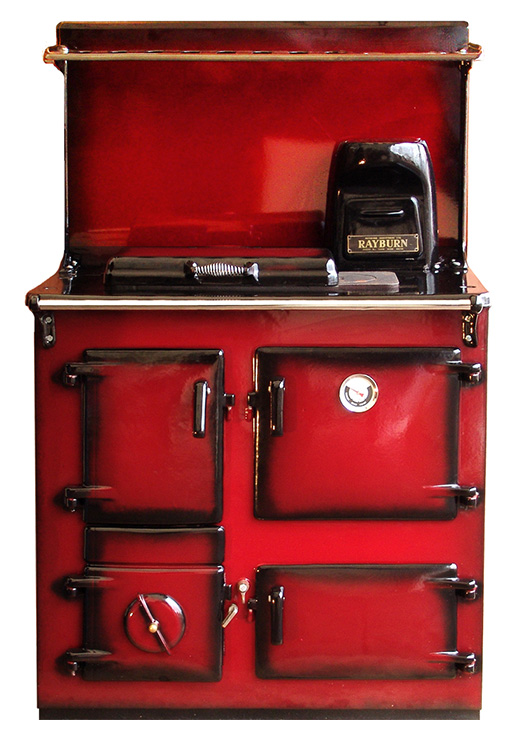

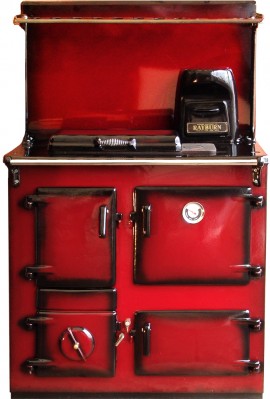

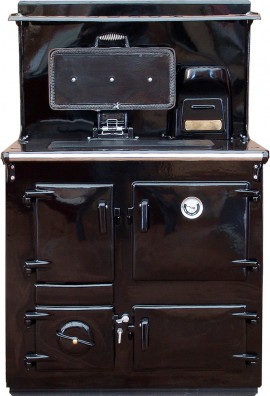

Rayburn No.3
The Rayburn No.3 was manufactured in Waterford for the Irish market and proved to be hugely popular; indeed it is still very much in demand today as a reconditioned cooker from GMH. In the original solid fuel format, some models of our reconditioned Rayburn No. 3 allows for external riddling to keep dust down in the kitchen. There is also a large spin wheel on the ash box door that combines with the flue box damper to give a fine degree of burn control.
Both fuel types come with a single cast iron hot plate cover, a second warming oven, an oven-door mounted temperature gauge and there is an option for a plate rack and splash back panel.
Rayburn No.3 Solid Fuel Configurations
- Non boiler
- Domestic hot water boiler
- Central heating boiler for up to 5 radiators
Features
- Burns all types of solid fuel
- Robust cast iron construction
- Oven temperature indicator
- Large surface hotplate
- Hotplate cover
Optional Extras
- Optional plate rack and splash back
- Steel Plinth
Specifications
- Height 822mm
- Width 851mm
- Depth 511mm
- Depth to bracket 590mm
- Flue 5” (125mm) rear centred: H912mm x 183mm from RH edge. Top connection option available
- Boiler flow pipe 1” BSP centred: H700mm x 90mm from back edge
- Boiler return pipe 1” BSP centred: H394mm x 90mm from back edge
- Hotplate W545mm x L195mm boiling side LH
- Flue damper
- Roasting oven W350mm x H305mm x D410mm
- Warming oven W350mm x H205mm x D410mm
- Fuel: multi-fuel: wood & coal
- Firebox dimensions: W220mm x H420mm x D380mm
- External riddling available on some models
- Height to top of splash back panel: 1316mm
notes
- Max. Weight: 320Kg
- Non-boiler, DHW or central heating boiler to a maximum of 5 radiators
- Some LH flue models were made, please check for availability.
Click here to view our range of enamel colours or contact us for prices and availability.
We offer a full installation service; however the price may vary depending on any additional preparation work required such as for the chimney or plumbing.
Due to the nature of the casting process all dimensions are subject to slight +/- variations.
