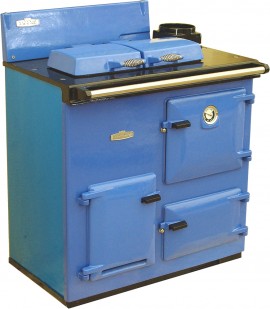

Rayburn Oil Fired (OF)
The reconditioned Rayburn Oil Fired (OF) series from GMH includes some ranges branded as Rayburn Royal and denotes heating cookers that were originally manufactured as oil fired rather than conversions. There are two models the OF7 and the OF22; the difference being the boiler capacity, whereby the OF7 is non-boiler or domestic hot water only and the OF22 is sufficient for up to 8 radiators.
You can select vaporising or pressure jet kerosene burners with the latter model affording the added convenience of timer and thermostatic temperature controls. There are options for chrome hot plate covers and a splash guard depending on the model you choose.

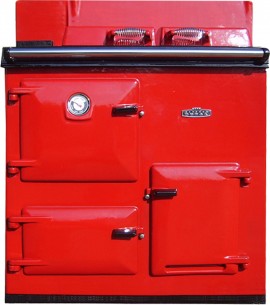

The OF series comes in both left and right sided flue models; please check with our sales office for availability.
Rayburn OF7 Configurations
- Oil Non boiler
- Oil domestic hot water boiler
- Wick Non boiler
- Wick domestic hot water boiler
Rayburn OF22 Configurations
- Oil heating boiler for up to 6 radiators
Features
- Large capacity roasting oven
- Twin hotplate covers
- Second warming oven
- Thermostatic control with pressure jet model
- Heats up to 8 radiators
Specifications
- Height 815mm/li>
- Base width 905mm
- Depth 582mm
- Depth to bracket 647mm
- Flue 6” (150mm) rear centred: H905mm x 96mm from RH edge. Top connection option available
- Boiler flow pipe 1” BSP centred: H751mm x 57mm from back edge
- Boiler return pipe 1” BSP centred: H331mm x 57mm from back edge
- Roasting oven W350mm x H305mm x D410mm
- Warming oven W350mm x H205mm x D410mm
- Hotplate W545mm x W545mm x L275mm boiling
- Hotplate simmering side
- Fuel: multi-fuel: wood, coal & turf. Oil conversion available; pressure jet 28 second kerosene
- Firebox dimensions: W340mm x H420 x D380mm
- External riddling on all models
- Height of opened lid, full extent: 1250mm
- Boiler thermostat
- Oven or boiler damper control
- Hob width 905mm (wider than base)
Heat Output
- Coal: total 16.2kW, to room 4.6kW to water 11.6kW
- OF7 – Non-boiler or DHW
- Wood: total 14.1kW, to room 5.0kW to water 9.1kW
- Burning coal the output is sufficient for 17.6 M² radiator surface area or 12 single radiators
notes
- Max. Weight: 370Kg
Click here to view our range of enamel colours or contact us for prices and availability.
We offer a full installation service; however the price may vary depending on any additional preparation work required such as for the chimney or plumbing.
Due to the nature of the casting process all dimensions are subject to slight +/- variations.
