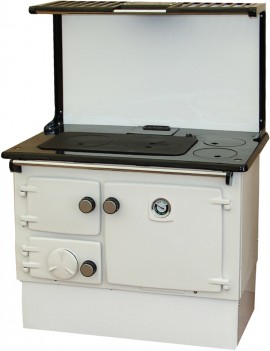

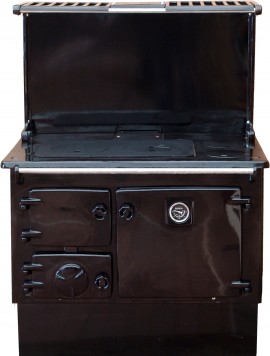

Stanley 8

The Stanley 8 has been in continuous production in one form or another from the 1940’s right up to the present day and is the most successful range cooker in Irish history. Several factors contribute towards this success but the most important is versatility.

Once reconditioned by GMH, this modest sized heating cooker offers a choice of five different boilers as well as a cooking only version and comes in solid fuel, pressure jet or vaporising burner options. You can also select between enamelled or Bakelite door handles and there are options for a pate rack and splash back.

The solid fuel model is a multi-fuel appliance and can be fired from either the front or top on some models.

Stanley 8 Solid Fuel Configurations

  • Non boiler
  • Domestic hot water boiler
  • L boiler for up to 4 radiators
  • U8 boiler for up to 6 radiators
  • U9 boiler for up to 8 radiators

Features

  • Burns all types of dry solid fuel
  • Robust cast iron construction
  • Oven temperature indicator
  • Large surface hotplates
  • Domestic hot water and central heating models available
  • Non boiler model available
  • Optional plate rack and splashback

Specifications

Stanley 8
  1. Height 720mm
  2. Width 907mm
  3. Depth 555mm
  4. Depth to bracket 610mm
  5. Flue 5” (125mm) rear centred: H560mm x 395mm from RH edge of hob. Top connection option
  6. Boiler flow pipe 1” BSP rear connection, centred: H870mm x 140mm from LH edge of hob
  7. Boiler return pipe 1” BSP rear connection, centred: H465mm x 140mm from LH edge of hob
  8. Hotplate W555mm x L295mm boiling side LH
  9. Oven W390mm x H330mm x D400mm
  10. Boiling hotplate 300mm diameter circle
  11. Fuel: multi-fuel: wood & coal
  12. Firebox dimensions (maximum, non-boiler): W330mm x H340mm x D340mm
  13. Height to top of splash back panel: 1228mm

Heat Output to Water

  • DHW boiler 2.9kW
  • L boiler 4.4kW up to 4 radiators
  • U8 boiler 6.2kW up to 6 radiators
  • U9 boiler 13.76kW up to 8 radiators

Notes

  • Max. Weight: 185Kg
  • There is no hotplate cover option for this cooker. Plate rack is a cost option.

Click here to view our range of enamel colours or contact us for prices and availability.

We offer a full installation service; however the price may vary depending on any additional preparation work required such as for the chimney or plumbing.

Due to the nature of the casting process all dimensions are subject to slight +/- variations.
