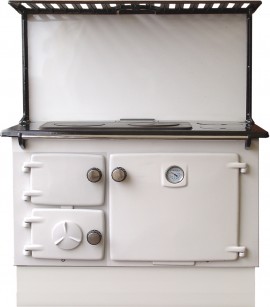

Stanley 9

A reconditioned Stanley 9 is similar to the Stanley 8 in styling and it has the same capacity fire box for the solid fuel model. It does boast however, the largest capacity oven of any range cooker sold by GMH and has the additional benefit of a longer hot plate than the Stanley 8.

We supply the solid fuel model, the solid fuel model can be fired from either the front or top.

Stanley 9 Solid Fuel Configurations

  • Non boiler
  • Domestic hot water boiler
  • L boiler for up to 4 radiators
  • U8 boiler for up to 6 radiators
  • U9 boiler for up to 8 radiators

Features

  • Burns all types of dry solid fuel
  • Robust cast iron construction
  • Oven temperature indicator
  • Large surface hotplates
  • Domestic hot water and central heating models available
  • Non boiler model available
  • Optional plate rack and splash back

Specifications

Stanley 9
  1. Height 755mm
  2. Width 1015mm
  3. Depth 555mm
  4. Depth to bracket 615mm
  5. Flue 5” (125mm) rear centred: H605mm x 440mm from RH edge of hob. Top connection option
  6. Boiler flow pipe 1” BSP rear connection, centred: H912mm x 140mm from LH edge of hob
  7. Boiler return pipe 1” BSP rear connection, centred: H507mm x 140mm from LH edge of hob
  8. Hotplate W590mm x L295mm boiling side LH
  9. Oven W460mm x H365mm x D400mm
  10. Simmering hotplate 240mm circle
  11. Oven W400mm x H325mm x D410mm
  12. Fuel: multi-fuel: wood & coal
  13. Firebox dimensions (maximum, non-boiler): W330mm x H340mm x D340mm
  14. Height to top of splash back panel: 1270mm

Heat Output to Water

  • DHW boiler 2.9kW
  • L boiler 4.4kW up to 4 radiators
  • U8 boiler 6.2kW up to 6 radiators
  • U9 boiler 13.76kW up to 8 radiators

Notes

  • Max. Weight 205kg
  • There is no hotplate cover option for this cooker. Plate rack is a cost option.

Click here to view our range of enamel colours or contact us for prices and availability.

We offer a full installation service; however the price may vary depending on any additional preparation work required such as for the chimney or plumbing.

Due to the nature of the casting process all dimensions are subject to slight +/- variations.
