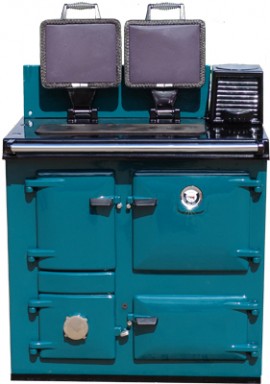

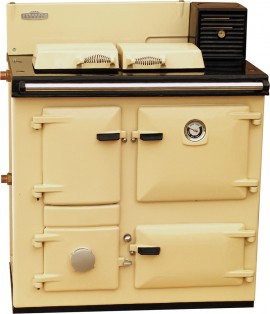

Rayburn MF

The reconditioned Rayburn MF (Multi Fuel) from GMH is similar to the current Rayburn 216 and is a multi-fuel cooker. In its solid fuel format it represents the evolution of the older Rayburn 2 and subsequent Rayburn 3 models. Some ranges are branded as the Rayburn Royal but are essentially the same cooker and we group them under the MF banner.

The solid fuel model allows for external riddling and has a silver finished spin wheel on the ash box door to adjust airflow and thus control the burn rate.

Most models have a right hand flue, although there were a limited number of left hand flue models manufactured; please check with our sales office for availability.

Both fuel types come with a range of hot plate cover options that are dependent on the models we have in stock and all models have a splash guard enamelled to match the colour of the cooker.

Configurations

  • Solid fuel and boiler for up to 6 radiators
  • Non boiler option available

Features

  • Burns all types of solid fuel
  • Robust cast iron construction
  • Oven temperature indicator
  • Large surface hotplate
  • Front loading
  • Large roasting oven
  • Lower warming oven
  • Large roasting oven
  • Heats up to 8 radiators
  • Right or left hand flue option

Optional Extras

  • Steel Plinth

Specifications

Rayburn MF Rayburn MF
  1. Height 815mm
  2. Width 840mm
  3. Depth 510mm
  4. Depth to bracket 575mm
  5. Flue 5” (125mm) rear centred: H910mm x 95mm from RH edge. Top connection option available
  6. Boiler flow pipe 1” BSP centred: H765mm x 100mm from back edge
  7. Boiler return pipe 1” BSP centred: H385mm x 100mm from back edge
  8. Roasting oven W350mm x H305mm x D410mm
  9. Warming oven W350mm x H205mm x D410mm
  10. Hotplate W545mm x L195mm boiling side
  11. Hotplate simmering side
  12. Fuel: multi-fuel: wood & coal
  13. Fire box dimensions: W220mm x H440mm x D250mm
  14. Height to top of splash guard 995mm (this dimension can vary, ask for details)
  15. Height of opened lid, full extent: 1245mm

Notes

  • Max. Weight: 315Kg
  • A limited number of LH flue models were made, please check for availability.

Hot Water Options

  • Non-boiler, DHW or central heating maximum of 9.3M² radiator surface area burning coal (approximately 6 single radiators)

Click here to view our range of enamel colours or contact us for prices and availability.

We offer a full installation service; however the price may vary depending on any additional preparation work required such as for the chimney or plumbing.

Due to the nature of the casting process all dimensions are subject to slight +/- variations.
